| Brand Name : | Helm Tower |
| Model Number : | Poclain MS25 |
| Certification : | ISO 9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 700 units per month |
| Delivery Time : | 15 working days |

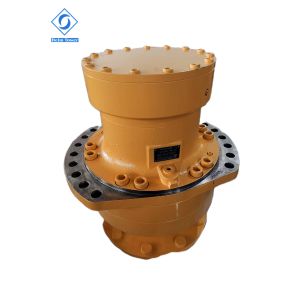

100% Replace Poclain Hydraulic Radial Piston Motor MS25 For Heavy Duty Handling Car
Features:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
MS25 series Displacement Diagram:
Code | MS25 | |||
Displacement Group | 8 | 0 | 1 | 2 |
Displacement(ml/r) | 2004 | 2498 | 2752 | 3006 |
Theoretical torque at 10 MPa(N.m) | 3186 | 3972 | 4376 | 4780 |
Rated speed(r/min) | 100 | 80 | 63 | 63 |
Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
Rated torque(N.m) | 6550 | 8200 | 9000 | 9850 |
Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
Max torque(N.m) | 8100 | 10100 | 11150 | 12150 |
Speed range(r/min) | 0-145 | 0-137 | 0-125 | 0-115 |
Max power(kW) | 90 | |||
MS25 Applications:
Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK
series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.



Workshop View:




|
